Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,130HTML edition
← Chapter contentsManual collection

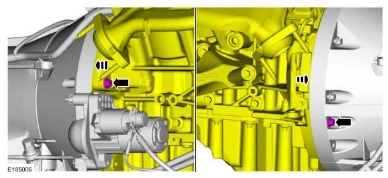

Oil Pan — original illustration 1, reference 5130Original colors & callouts · Select to enlarge

NOTE: The automatic transmission has one more bottom bellhousing-to-oil pan bolt than the manual transmission.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

NOTE: Do not torque at this time.

6. Install the oil pan bolts.

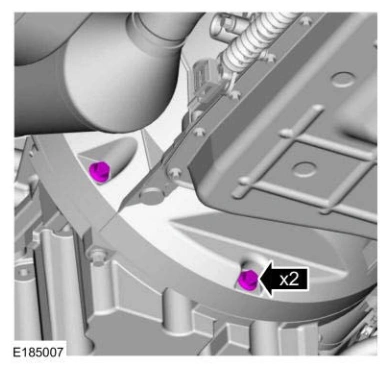

Oil Pan — original illustration 2, reference 5130Original colors & callouts · Select to enlarge

NOTE: Do not torque at this time.

7. Install the oil pan bolt.
