Oil Pan — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5129

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

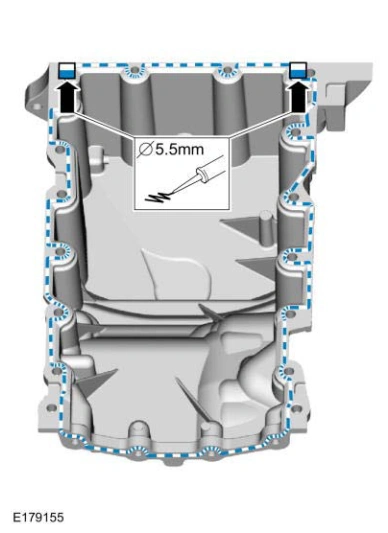

Oil Pan — original illustration 1, reference 5129Original colors & callouts · Select to enlarge

NOTE: The oil pan and the specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

4. Install the bolts finger tight.

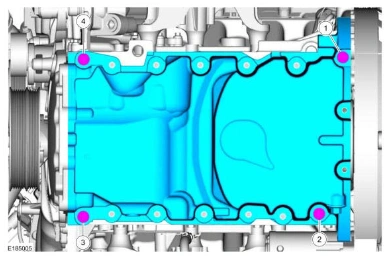

Oil Pan — original illustration 2, reference 5129Original colors & callouts · Select to enlarge

NOTE: Do not torque at this time.

5. Draw the transmission and engine together using the bolts.
