Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,131HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 5131Original colors & callouts · Select to enlarge

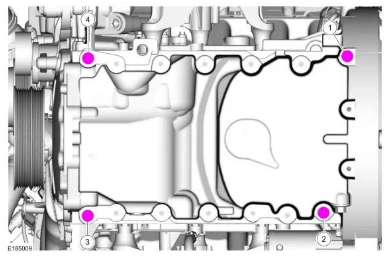

8. Tighten the oil pan bolts in sequence.

Torque

: 27 lb.in (3 Nm)

Oil Pan — original illustration 2, reference 5131Original colors & callouts · Select to enlarge

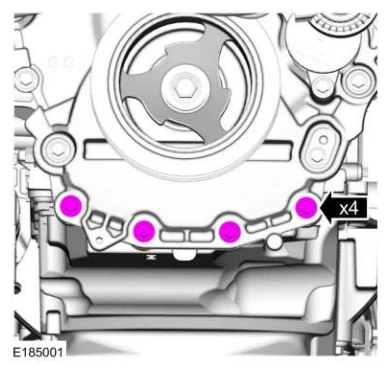

9. Install the engine front cover bolts finger tight.

Oil Pan — original illustration 3, reference 5131Original colors & callouts · Select to enlarge
