Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,134HTML edition
← Chapter contentsManual collection

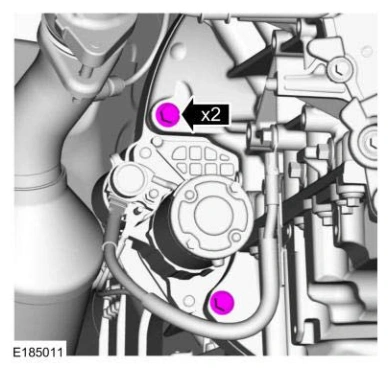

Oil Pan — original illustration 1, reference 5134Original colors & callouts · Select to enlarge

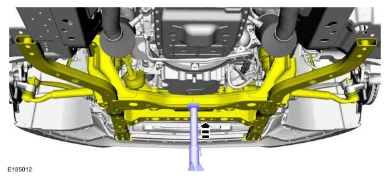

15. Using an adjustable stand, raise the subframe.

Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 2, reference 5134Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

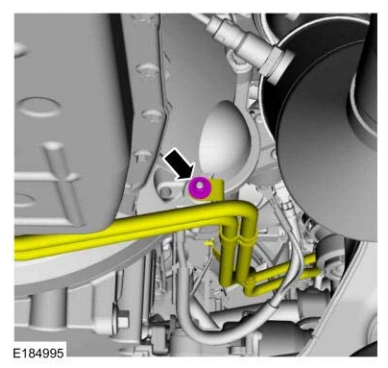

16. Position the transmission cooling tube bracket and install the nut.

Torque

: 124 lb.in (14 Nm)

Oil Pan — original illustration 3, reference 5134Original colors & callouts · Select to enlarge
