Oil Pan — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5136

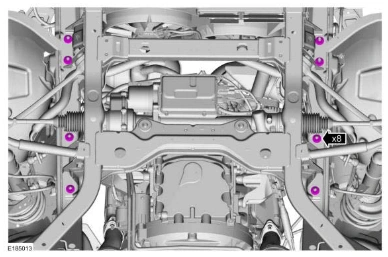

Torque

: 85 lb.ft (115 Nm)

Oil Pan — original illustration 1, reference 5136Original colors & callouts · Select to enlarge

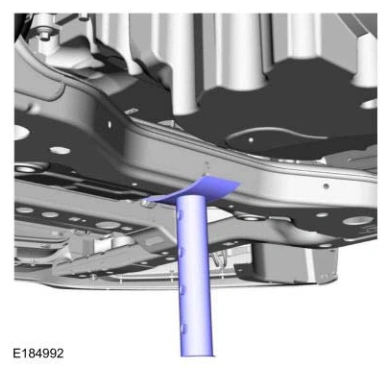

21. Remove the adjustable stand.

Use the General Equipment: Vehicle/Axle Stands

Oil Pan — original illustration 2, reference 5136Original colors & callouts · Select to enlarge

22. Tighten the bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)
