Oil Pan — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,143HTML edition
← Chapter contentsManual collection
Oil Pan — original illustration 1, reference 5143Original colors & callouts · Select to enlarge

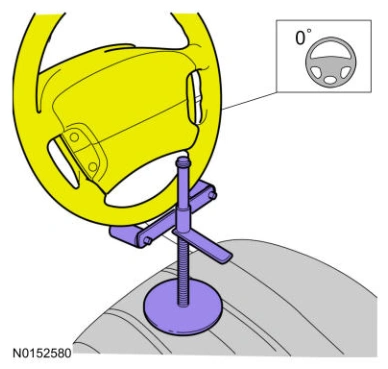

41. Remove the holding device.

Oil Pan — original illustration 2, reference 5143Original colors & callouts · Select to enlarge

42.

1. Position the steering column dash seal.

2. Tighten the steering column dash seal nuts.

Torque

: 80 lb.in (9 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 5143
