Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,151HTML edition
← Chapter contentsManual collection

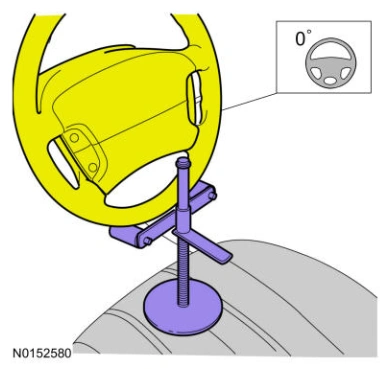

8. Using a holding device, hold the steering wheel in the straight-ahead position.

Oil Pump — original illustration 1, reference 5151Original colors & callouts · Select to enlarge

9. Remove the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

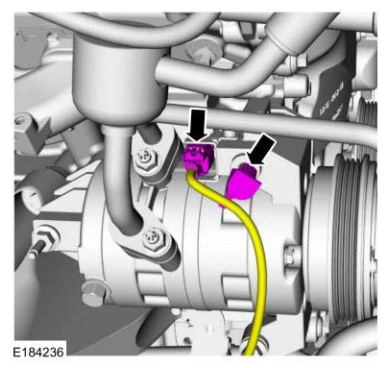

10. Disconnect the A/C compressor electrical connector and the wire harness retainer.

Oil Pump — original illustration 2, reference 5151Original colors & callouts · Select to enlarge

NOTE: The stud bolts and bolt will stay with the A/C compressor.

11. Loosen the stud bolts, bolt and position the A/C compressor aside.
