Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,153HTML edition
← Chapter contentsManual collection

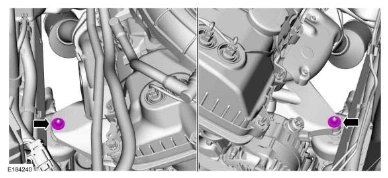

14. Remove the RH and LH engine mount bracket nuts.

Oil Pump — original illustration 1, reference 5153Original colors & callouts · Select to enlarge

15. Remove the engine front cover. Refer to: Engine Front Cover .

NOTE: Rotate the crankshaft in a clockwise direction only.

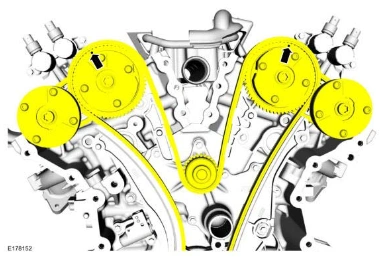

16. Align the timing marks.

Oil Pump — original illustration 2, reference 5153Original colors & callouts · Select to enlarge

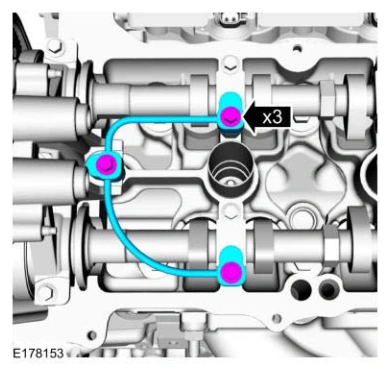

17. Remove the bolts and the LH oil tube.

Oil Pump — original illustration 3, reference 5153Original colors & callouts · Select to enlarge
