Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,156HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 5156Original colors & callouts · Select to enlarge

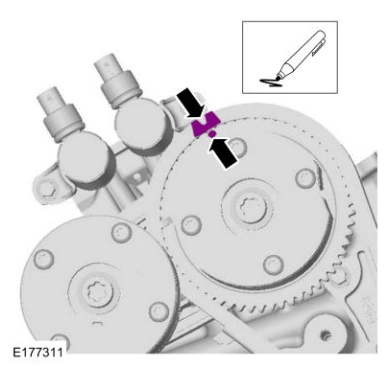

NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

23. Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown in illustration.

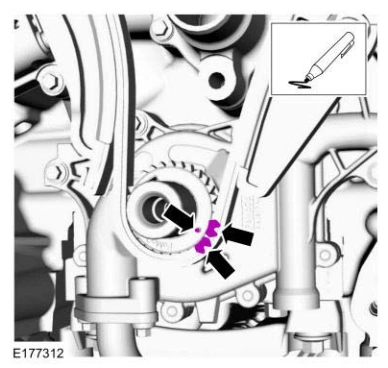

Oil Pump — original illustration 2, reference 5156Original colors & callouts · Select to enlarge

24. Remove the bolts and the timing chain tensioner.
