Oil Pump — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,158HTML edition
← Chapter contentsManual collection
Oil Pump — original illustration 1, reference 5158Original colors & callouts · Select to enlarge

27. Position the timing chain aside and remove the crankshaft sprocket.

Oil Pump — original illustration 2, reference 5158Original colors & callouts · Select to enlarge

28. Remove the retainers and the radiator top shield.

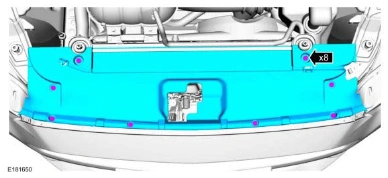

Oil Pump — original illustration 3, reference 5158Original colors & callouts · Select to enlarge

29.
