Oil Pump — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5160

Oil Pump — original illustration 1, reference 5160Original colors & callouts · Select to enlarge

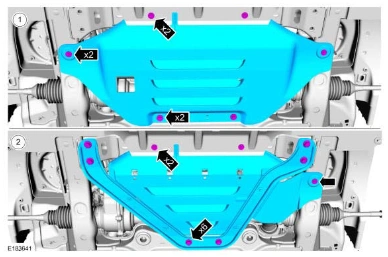

33. Remove the pin-type retainers, bolts and the underbody shield.

Oil Pump — original illustration 2, reference 5160Original colors & callouts · Select to enlarge

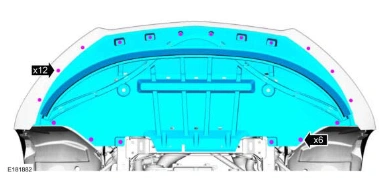

34. Remove the oil pan plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment

Install the oil pan drain plug.

Torque

: 20 lb.ft (27 Nm)

Oil Pump — original illustration 3, reference 5160Original colors & callouts · Select to enlarge

35. Remove and discard the engine oil filter.
