Oil Pump — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5188

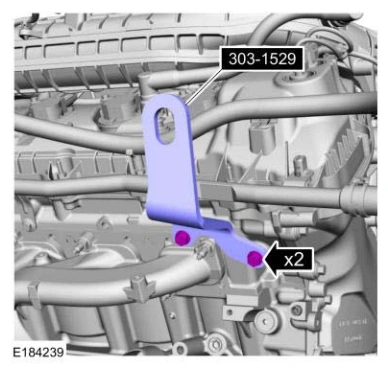

45. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

Oil Pump — original illustration 1, reference 5188Original colors & callouts · Select to enlarge

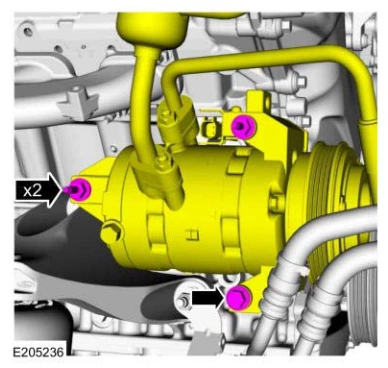

46. Position the A/C compressor and install the stud bolts and bolt.

Torque

: 18 lb.ft (25 Nm)

Oil Pump — original illustration 2, reference 5188Original colors & callouts · Select to enlarge

47. Connect the A/C compressor electrical connector and the wire harness retainer.

Ford_Mustang_all_2015-2017.pdf · source reference 5188
