Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,273HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5273Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

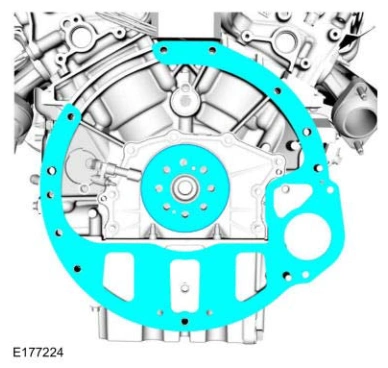

4. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

Engine — original illustration 2, reference 5273Original colors & callouts · Select to enlarge

NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.

5. Mount the engine to the mounting stand.

Use the General Equipment: Mounting Stand
