Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,275HTML edition
← Chapter contentsManual collection

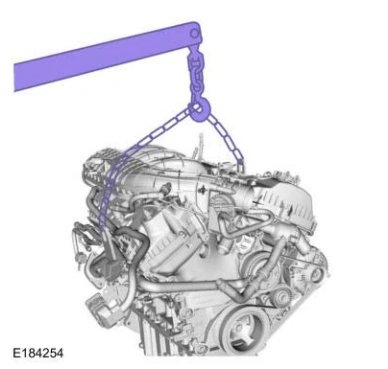

Engine — original illustration 1, reference 5275Original colors & callouts · Select to enlarge

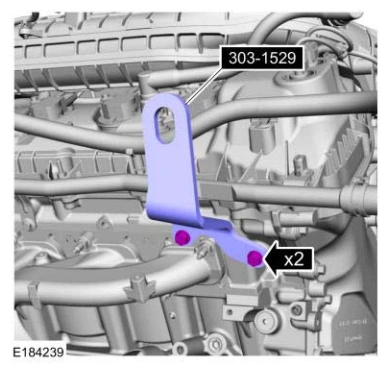

8. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

Engine — original illustration 2, reference 5275Original colors & callouts · Select to enlarge

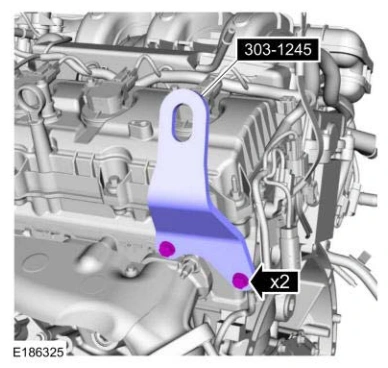

9. Remove Special Service Tool: 303-1245 Engine Lift Eye.

Engine — original illustration 3, reference 5275Original colors & callouts · Select to enlarge
