Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5277

Engine — original illustration 1, reference 5277Original colors & callouts · Select to enlarge

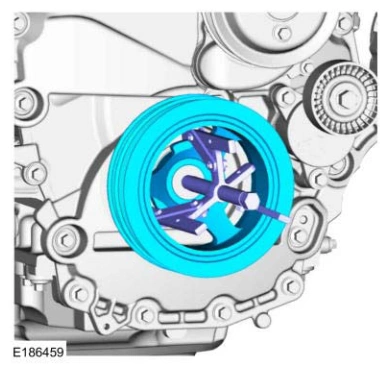

13. Using a three leg puller, remove the crankshaft pulley.

Use the General Equipment: Three Leg Puller

Engine — original illustration 2, reference 5277Original colors & callouts · Select to enlarge

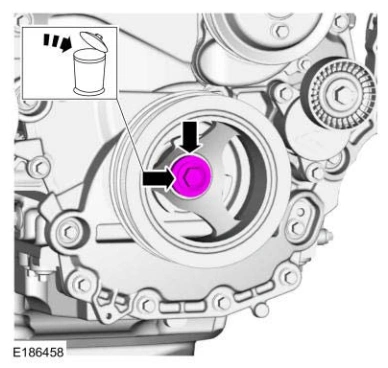

14. Using the special tool, remove and discard the crankshaft front seal.

Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
