Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,279HTML edition
← Chapter contentsManual collection

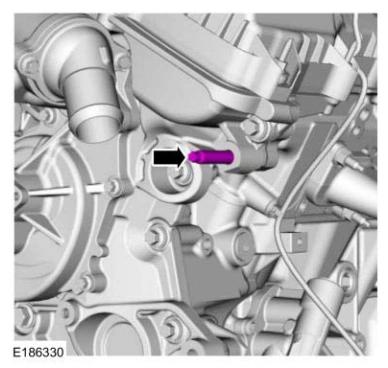

17. Remove the generator stud.

Engine — original illustration 1, reference 5279Original colors & callouts · Select to enlarge

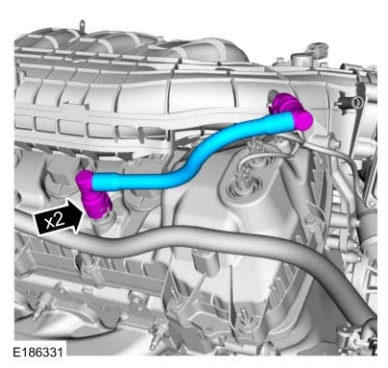

18. Remove the PCV tube.

Engine — original illustration 2, reference 5279Original colors & callouts · Select to enlarge

19. Remove the bolts and the upper intake manifold support bracket.

Ford_Mustang_all_2015-2017.pdf · source reference 5279
