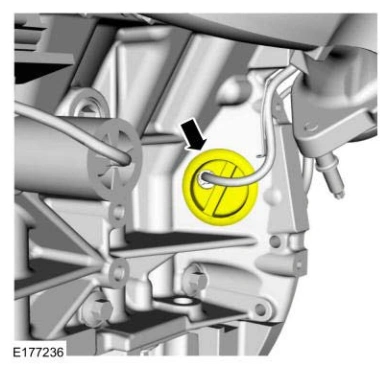

22. Remove the wiring harness grommet.

Engine — original illustration 1, reference 5281Original colors & callouts · Select to enlarge

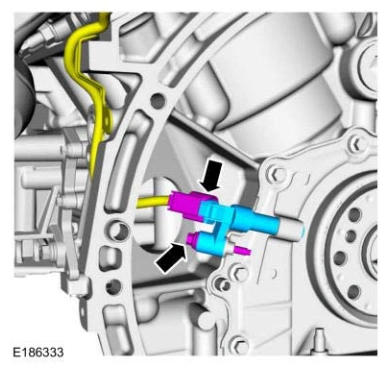

23. Disconnect the CKP sensor electrical connector.

Remove the bolt and the CKP sensor.

Engine — original illustration 2, reference 5281Original colors & callouts · Select to enlarge

24. Remove the bolt and the ground strap.
