Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5282

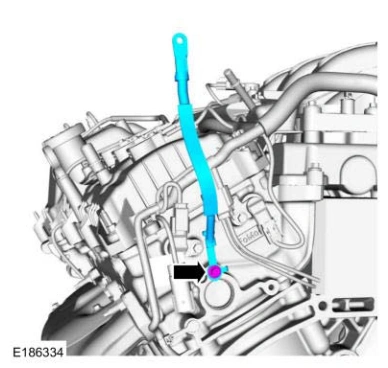

Engine — original illustration 1, reference 5282Original colors & callouts · Select to enlarge

25. Disconnect the KS sensor electrical connector.

Disconnect the CMP sensor electrical connectors.

Detach the wiring harness retainers.

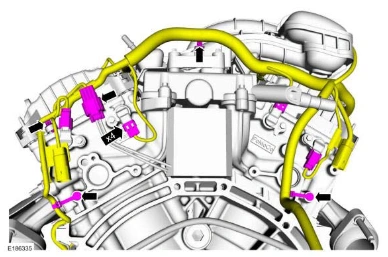

Engine — original illustration 2, reference 5282Original colors & callouts · Select to enlarge

26. Disconnect the VCT oil control solenoids electrical connectors.

Disconnect the ignition coil-on-plug electrical connectors.

Disconnect the oil pressure switch electrical connector.

Detach the wiring harness retainers.
