Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5285

Engine — original illustration 1, reference 5285Original colors & callouts · Select to enlarge

32. Remove the fuel rail insulators.

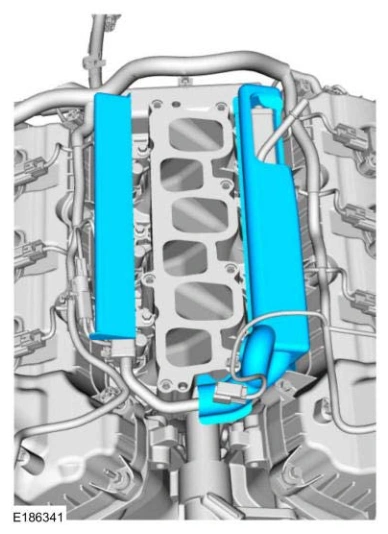

Engine — original illustration 2, reference 5285Original colors & callouts · Select to enlarge

33. Detach the wiring harness retainers.
