Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,287HTML edition
← Chapter contentsManual collection

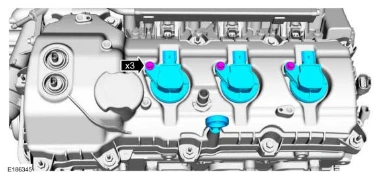

Remove the bolts and the ignition coil-on-plugs.

Remove the oil level indicator.

Engine — original illustration 1, reference 5287Original colors & callouts · Select to enlarge

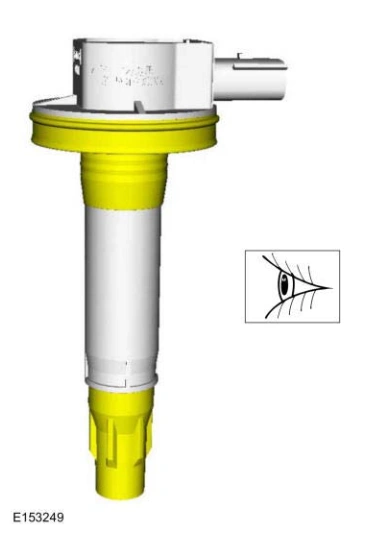

37. Inspect the coil seals for rips, nicks or tears and replace if necessary.

Engine — original illustration 2, reference 5287Original colors & callouts · Select to enlarge

NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.

38. Loosen the bolts and the LH valve cover.

Ford_Mustang_all_2015-2017.pdf · source reference 5287
