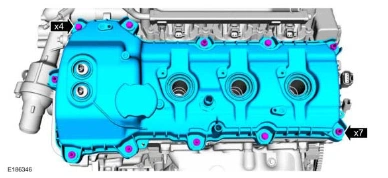

Engine — original illustration 1, reference 5288Original colors & callouts · Select to enlarge

39. Discard the gasket.

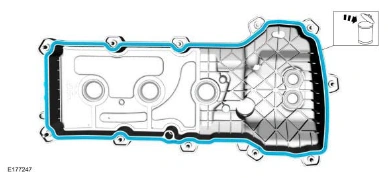

Engine — original illustration 2, reference 5288Original colors & callouts · Select to enlarge

NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

40. Using the special tools, remove and discard the seal(s).

Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

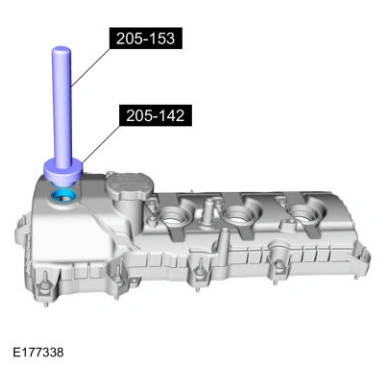

Engine — original illustration 3, reference 5288Original colors & callouts · Select to enlarge

NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

41. Using the special tools, remove and discard the seal(s).

Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
