Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5291

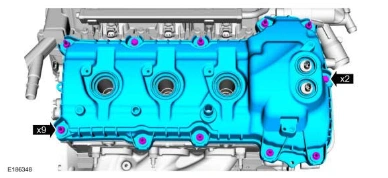

Engine — original illustration 1, reference 5291Original colors & callouts · Select to enlarge

46. Discard the gasket.

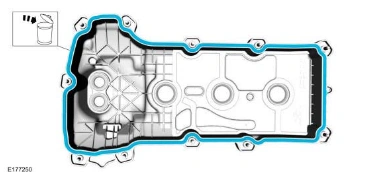

Engine — original illustration 2, reference 5291Original colors & callouts · Select to enlarge

NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

47. Using the special tools, remove and discard the seal(s).

Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

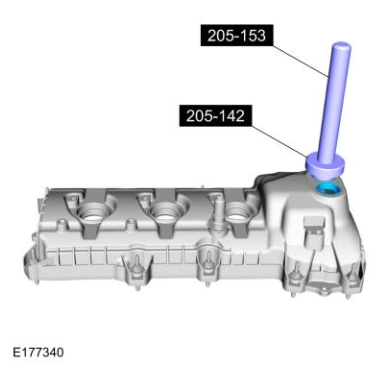

Engine — original illustration 3, reference 5291Original colors & callouts · Select to enlarge

NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

48. Using the special tools, remove and discard the seal(s).

Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.
