Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,294HTML edition
← Chapter contentsManual collection

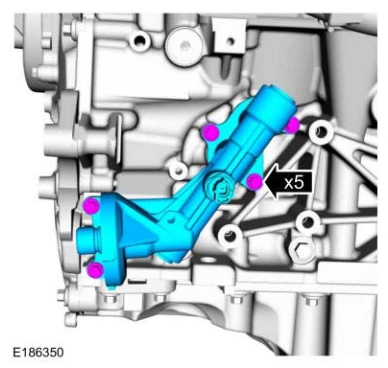

Engine — original illustration 1, reference 5294Original colors & callouts · Select to enlarge

55. Inspect and replace if necessary.

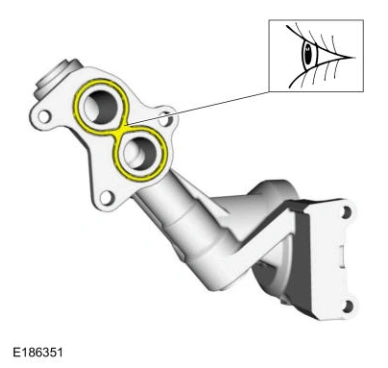

Engine — original illustration 2, reference 5294Original colors & callouts · Select to enlarge

56. Remove the nuts and the RH exhaust manifold.

Discard the nuts.

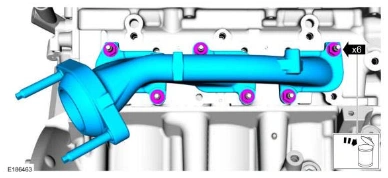

Engine — original illustration 3, reference 5294Original colors & callouts · Select to enlarge

57. Remove and discard the RH exhaust manifold gasket and studs.
