Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,295HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5295Original colors & callouts · Select to enlarge

58. Clean and inspect the catalytic converter flange. Refer to: Exhaust Manifold Cleaning and Inspection .

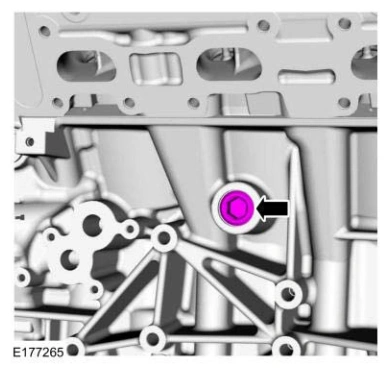

59. Remove the LH block coolant drain plug and allow coolant to drain from the cylinder block.

Engine — original illustration 2, reference 5295Original colors & callouts · Select to enlarge

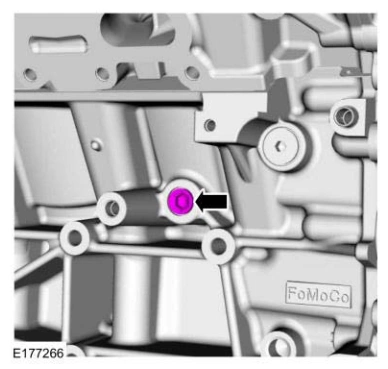

60. Remove the RH block coolant drain plug and allow coolant to drain from the cylinder block.

Engine — original illustration 3, reference 5295Original colors & callouts · Select to enlarge

61.

Ford_Mustang_all_2015-2017.pdf · source reference 5295
