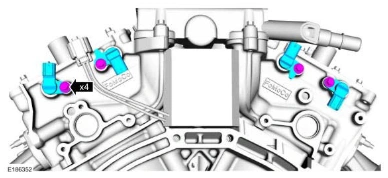

Remove the bolts and the CMP sensors.

Engine — original illustration 1, reference 5296Original colors & callouts · Select to enlarge

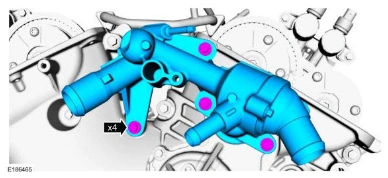

62. Remove the bolts and the thermostat housing.

Engine — original illustration 2, reference 5296Original colors & callouts · Select to enlarge

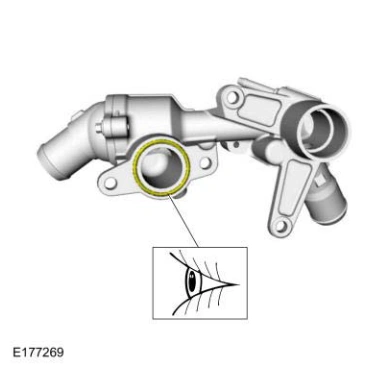

63. Inspect and replace if necessary.

Engine — original illustration 3, reference 5296Original colors & callouts · Select to enlarge

64. Remove and discard the thermostat housing O-ring seal.
