Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5298

Engine — original illustration 1, reference 5298Original colors & callouts · Select to enlarge

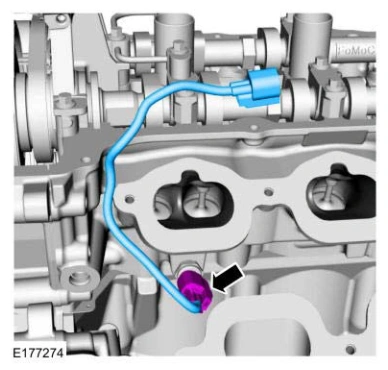

67. Disconnect the CHT sensor electrical connector.

Engine — original illustration 2, reference 5298Original colors & callouts · Select to enlarge

68. Remove the bolts and the coolant pump.
