Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5300

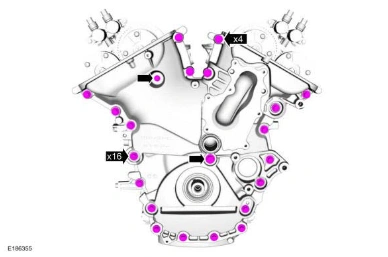

Engine — original illustration 1, reference 5300Original colors & callouts · Select to enlarge

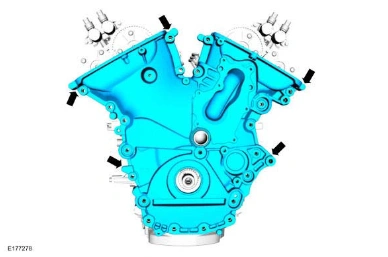

71. Using a pry tool, locate the 5 pry pads shown in illustration and pry the engine front cover loose and remove.

Engine — original illustration 2, reference 5300Original colors & callouts · Select to enlarge

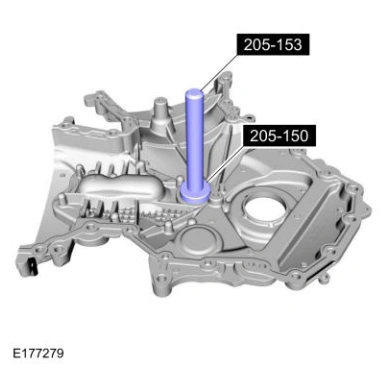

72. Using the special tools, remove the engine front cover to coolant pipe seal.

Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T- 4000-W) Handle.

Engine — original illustration 3, reference 5300Original colors & callouts · Select to enlarge

NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the engine
