Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5303

Engine — original illustration 1, reference 5303Original colors & callouts · Select to enlarge

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

77. Install Special Service Tool: 303-1248 Camshaft holding tools.

Engine — original illustration 2, reference 5303Original colors & callouts · Select to enlarge

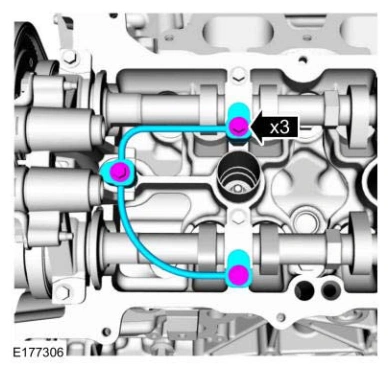

78. Remove the bolts and the RH oil tube.
