Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5306

Engine — original illustration 1, reference 5306Original colors & callouts · Select to enlarge

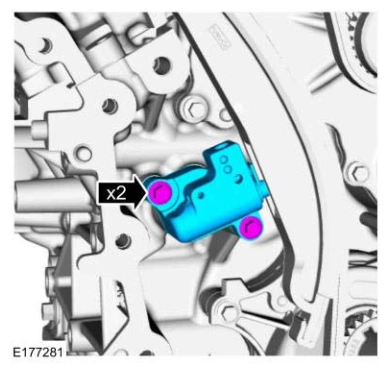

83. Remove the bolts and the timing chain tensioner.

Engine — original illustration 2, reference 5306Original colors & callouts · Select to enlarge

84. Remove the timing chain tensioner arm.
