Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,308HTML edition
← Chapter contentsManual collection

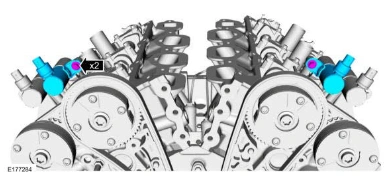

NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoids.

NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

86. Remove the bolts and the VCT oil control solenoids.

Engine — original illustration 1, reference 5308Original colors & callouts · Select to enlarge

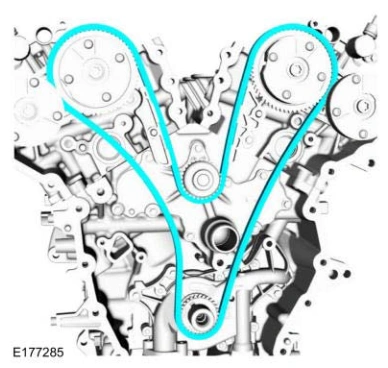

87. Remove the timing chain.

Engine — original illustration 2, reference 5308Original colors & callouts · Select to enlarge

88. Remove the crankshaft sprocket.
