Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,310HTML edition
← Chapter contentsManual collection

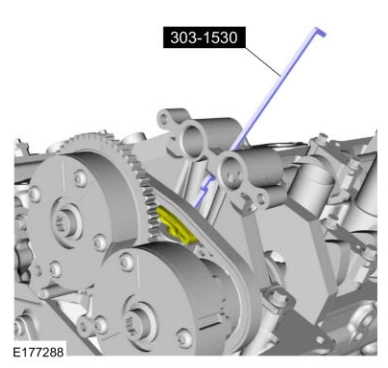

Engine — original illustration 1, reference 5310Original colors & callouts · Select to enlarge

91. Remove and discard the LH VCT unit bolts.

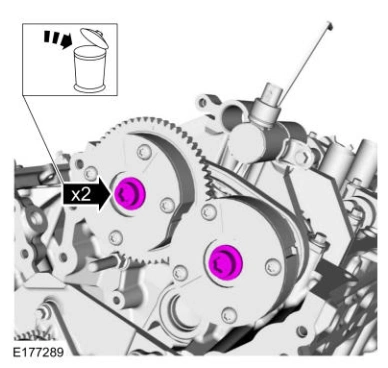

Engine — original illustration 2, reference 5310Original colors & callouts · Select to enlarge

92. Remove the LH VCT units and secondary timing chain.

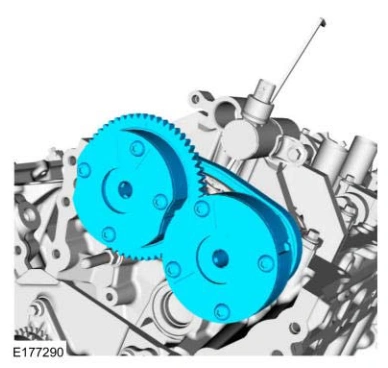

Engine — original illustration 3, reference 5310Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5310

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
