Engine — original illustration 1, reference 5309Original colors & callouts · Select to enlarge

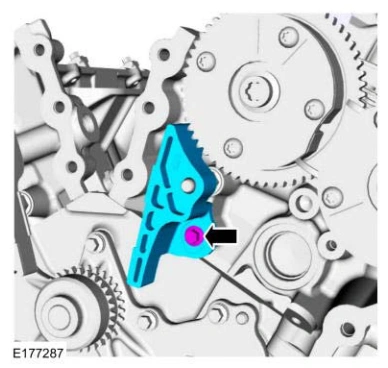

NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

89. Remove the bolt and the upper LH timing chain guide.

Engine — original illustration 2, reference 5309Original colors & callouts · Select to enlarge

NOTE: The VCT oil control solenoids are removed for clarity.

90. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
