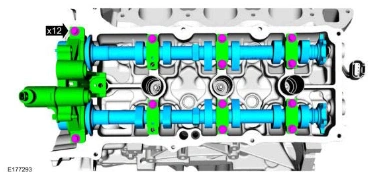

Engine — original illustration 1, reference 5312Original colors & callouts · Select to enlarge

NOTE: The VCT oil control solenoids are removed for clarity.

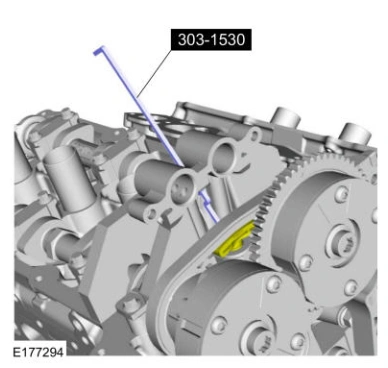

96. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Engine — original illustration 2, reference 5312Original colors & callouts · Select to enlarge

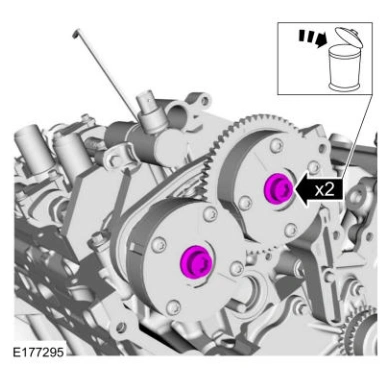

97. Remove and discard the RH VCT unit bolts.

Engine — original illustration 3, reference 5312Original colors & callouts · Select to enlarge

98. Remove the RH VCT units and secondary timing chain.
