Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5315

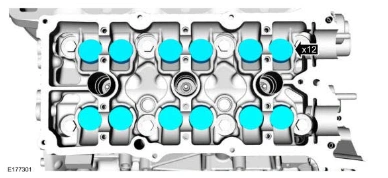

Remove the valve tappets from the cylinder heads.

Engine — original illustration 1, reference 5315Original colors & callouts · Select to enlarge

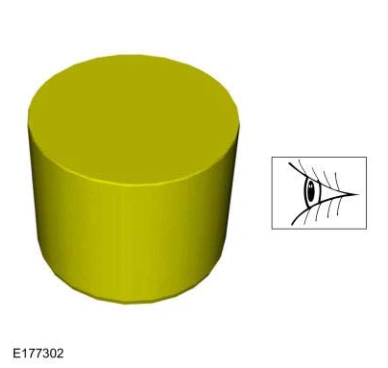

104. Inspect and install new components as necessary.

Engine — original illustration 2, reference 5315Original colors & callouts · Select to enlarge

105. Remove and discard the M6 bolt.

Engine — original illustration 3, reference 5315Original colors & callouts · Select to enlarge

NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil
