passages or the oil pan, may cause engine failure.

NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface

NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

106. Remove and discard the bolts from the cylinder head.

Remove the cylinder head.

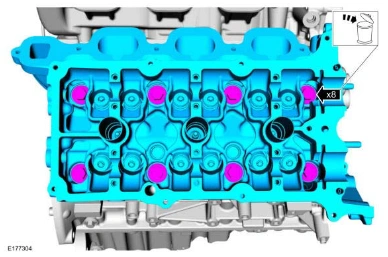

Engine — original illustration 1, reference 5316Original colors & callouts · Select to enlarge

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

107. Make sure that the mating faces of the cylinder head are clean and free of foreign material.

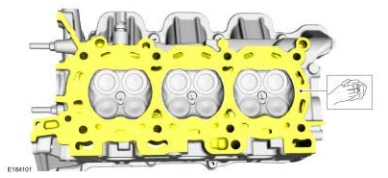

Engine — original illustration 2, reference 5316Original colors & callouts · Select to enlarge

108. Remove and discard the cylinder head gasket.
