Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5317

Engine — original illustration 1, reference 5317Original colors & callouts · Select to enlarge

NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

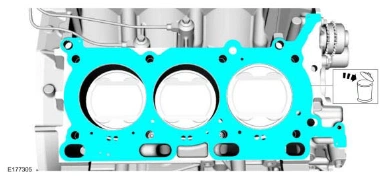

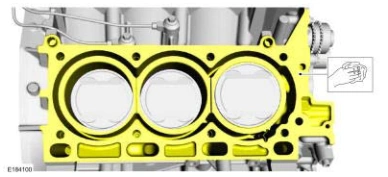

109. Make sure that the mating faces of the engine block are clean and free of foreign material.

Engine — original illustration 2, reference 5317Original colors & callouts · Select to enlarge

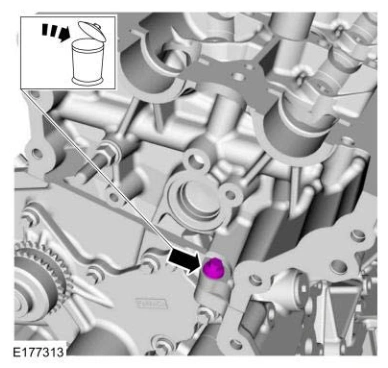

110. Remove and discard the M6 bolt.

Engine — original illustration 3, reference 5317Original colors & callouts · Select to enlarge
