Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,314HTML edition
← Chapter contentsManual collection

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

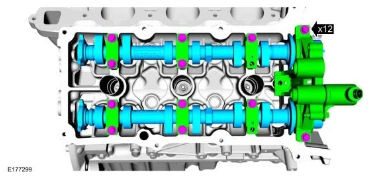

101. Remove the bolts, camshaft caps and the camshafts.

Engine — original illustration 1, reference 5314Original colors & callouts · Select to enlarge

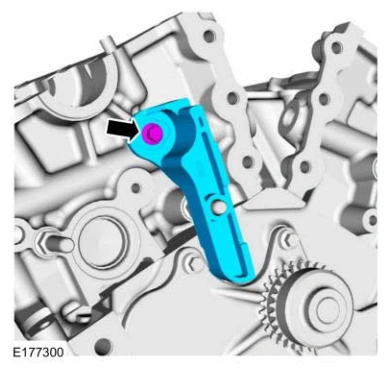

NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

102. Remove the bolt and the RH timing chain guide.

Engine — original illustration 2, reference 5314Original colors & callouts · Select to enlarge

NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.

NOTE: RH shown in illustration, LH similar.

103.
