Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,313HTML edition
← Chapter contentsManual collection

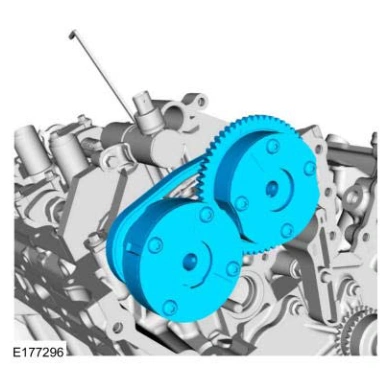

Engine — original illustration 1, reference 5313Original colors & callouts · Select to enlarge

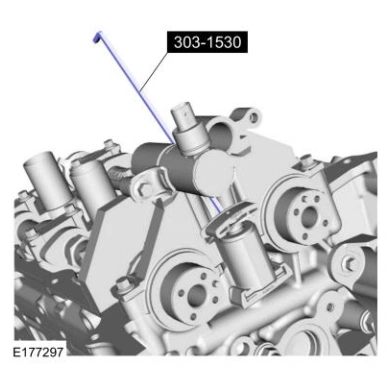

99. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Engine — original illustration 2, reference 5313Original colors & callouts · Select to enlarge

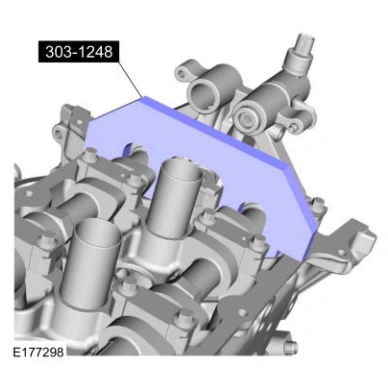

100. Remove Special Service Tool: 303-1248 Camshaft holding tools.

Engine — original illustration 3, reference 5313Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5313

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
