Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,305HTML edition
← Chapter contentsManual collection

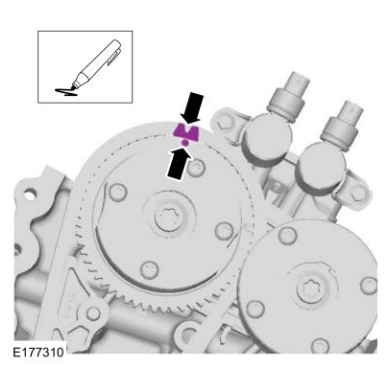

Engine — original illustration 1, reference 5305Original colors & callouts · Select to enlarge

81. Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown in illustration.

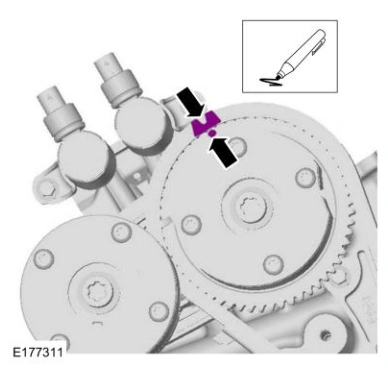

Engine — original illustration 2, reference 5305Original colors & callouts · Select to enlarge

NOTE: The crankshaft sprocket timing mark should be between the colored links.

82. Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown in illustration.
