Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,297HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5297Original colors & callouts · Select to enlarge

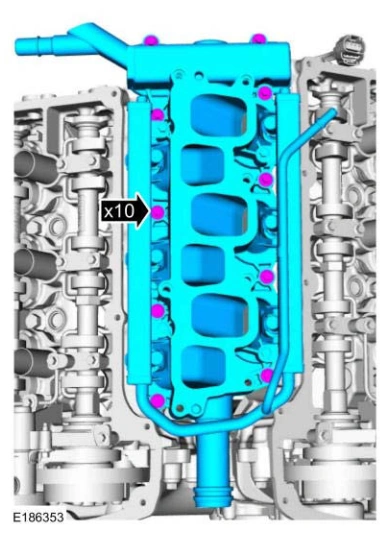

65. Remove the bolts and the lower intake manifold.

Engine — original illustration 2, reference 5297Original colors & callouts · Select to enlarge

66. Remove and discard the lower intake manifold gaskets.
