Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5299

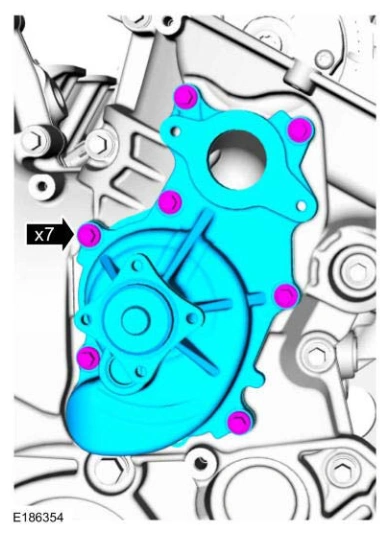

Engine — original illustration 1, reference 5299Original colors & callouts · Select to enlarge

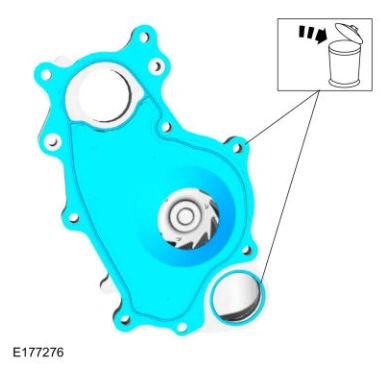

69. Remove and discard the coolant pump gasket and O-ring seal.

Engine — original illustration 2, reference 5299Original colors & callouts · Select to enlarge

70. Remove the engine front cover bolts.
