Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,293HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5293Original colors & callouts · Select to enlarge

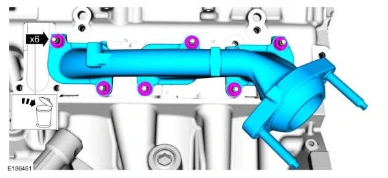

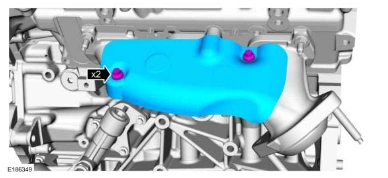

51. Remove the nuts and the LH exhaust manifold.

Discard the nuts.

Engine — original illustration 2, reference 5293Original colors & callouts · Select to enlarge

52. Clean and inspect the catalytic converter flange. Refer to: Exhaust Manifold Cleaning and Inspection .

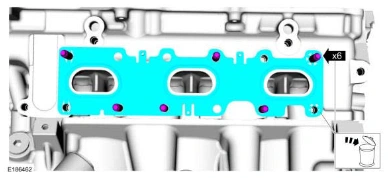

53. Remove and discard the LH exhaust manifold gasket and studs.

Engine — original illustration 3, reference 5293Original colors & callouts · Select to enlarge

54. Remove the bolts and the oil filter adapter.

Ford_Mustang_all_2015-2017.pdf · source reference 5293
