Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5289

Engine — original illustration 1, reference 5289Original colors & callouts · Select to enlarge

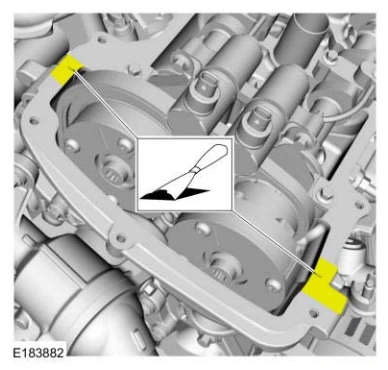

42. Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Engine — original illustration 2, reference 5289Original colors & callouts · Select to enlarge

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
