Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,286HTML edition
← Chapter contentsManual collection

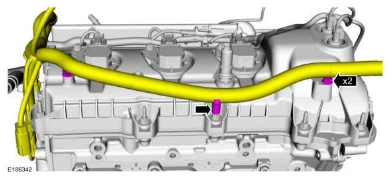

Engine — original illustration 1, reference 5286Original colors & callouts · Select to enlarge

34. Disconnect the VCT oil control solenoids electrical connectors.

Disconnect the ignition coil-on-plug electrical connectors.

Disconnect the CHT sensor electrical connector.

Detach the wiring harness retainers.

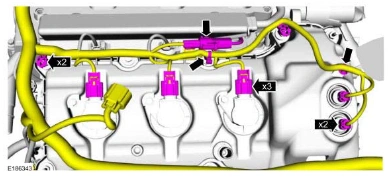

Engine — original illustration 2, reference 5286Original colors & callouts · Select to enlarge

35. Disconnect the fuel injector electrical connectors and remove the engine wiring harness.

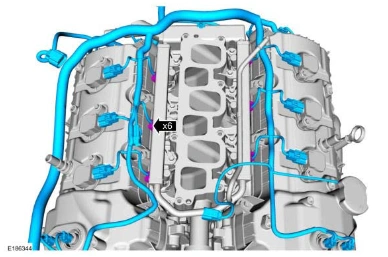

Engine — original illustration 3, reference 5286Original colors & callouts · Select to enlarge

36.

NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Ford_Mustang_all_2015-2017.pdf · source reference 5286
