Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,284HTML edition
← Chapter contentsManual collection

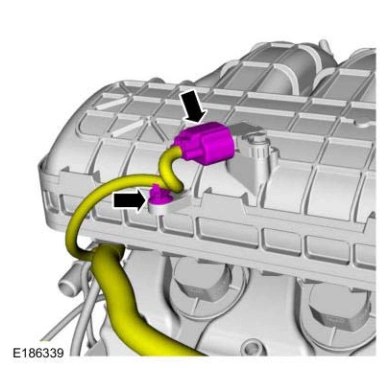

Engine — original illustration 1, reference 5284Original colors & callouts · Select to enlarge

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

30. Remove the bolts and the upper intake manifold.

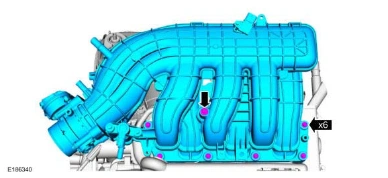

Engine — original illustration 2, reference 5284Original colors & callouts · Select to enlarge

31. Remove and discard the upper intake manifold gasket.

Ford_Mustang_all_2015-2017.pdf · source reference 5284
