Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,280HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5280Original colors & callouts · Select to enlarge

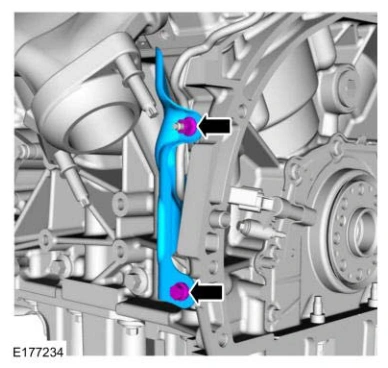

20. Remove the nut, bolt and the heat shield.

Engine — original illustration 2, reference 5280Original colors & callouts · Select to enlarge

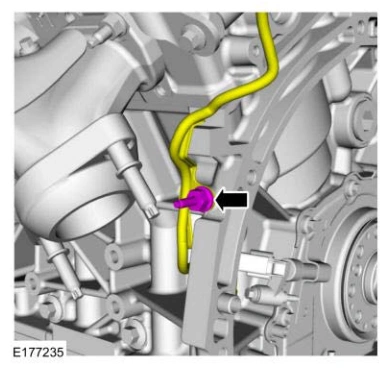

21. Remove the wiring harness retainer stud bolt.

Engine — original illustration 3, reference 5280Original colors & callouts · Select to enlarge
