Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,276HTML edition
← Chapter contentsManual collection

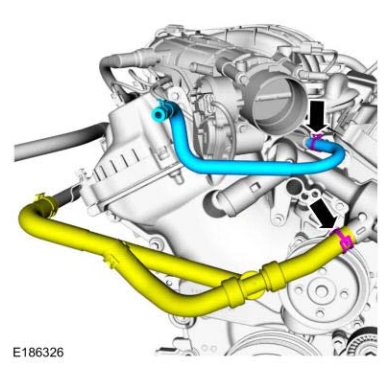

10. Release the clamp and remove the coolant return hose.

Use the General Equipment: Hose Clamp Remover/Installer

Release the clamp and position the coolant hose aside.

Use the General Equipment: Hose Clamp Remover/Installer

Engine — original illustration 1, reference 5276Original colors & callouts · Select to enlarge

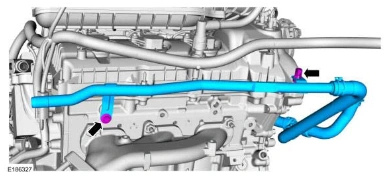

11. Remove the bolt, detach the coolant tube retainer and remove the coolant tube.

Engine — original illustration 2, reference 5276Original colors & callouts · Select to enlarge

12. Remove the crankshaft pulley bolt and washer.

Discard the bolt.
