Fuel Tank Draining — Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS) · Reference 6110

Position the Fuel Pump and Sender Unit aside. Using the Fuel Storage Tanker, completely drain the remaining fuel from the LH saddle of the fuel tank.

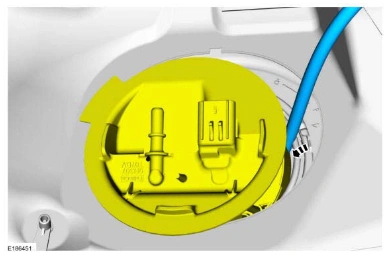

Fuel Tank Draining — original illustration 1, reference 6110Original colors & callouts · Select to enlarge

NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

10. Remove and discard the Fuel Pump and Sender Unit O-ring seal.

11. Remove the access cover and position aside.

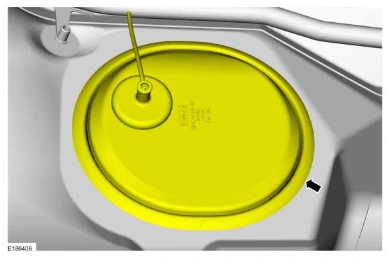

Fuel Tank Draining — original illustration 2, reference 6110Original colors & callouts · Select to enlarge

NOTE: Clean the fuel level sensor connections, flange surfaces and the immediate surrounding area of any dirt or foreign material.

12. Disconnect the electrical connector.
