Fuel Tank Draining — Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS) · Reference 6111

Fuel Tank Draining — original illustration 1, reference 6111Original colors & callouts · Select to enlarge

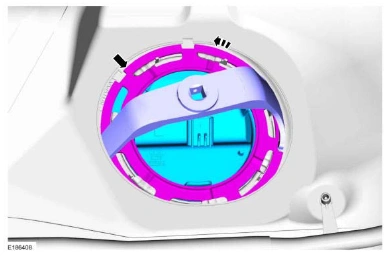

NOTE: Carefully install the Fuel Tank Sender Unit lock ring wrench to avoid damage to the fuel level sensor when removing the lock ring.

13. Using the special tool remove the fuel level sensor lock ring.

Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Tank Draining — original illustration 2, reference 6111Original colors & callouts · Select to enlarge

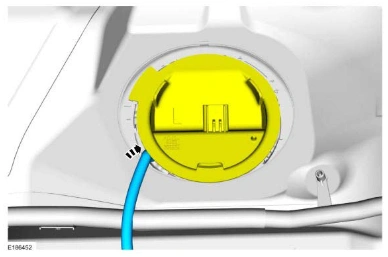

NOTE: The fuel level sensor must be handled carefully to avoid damage to the float arm.

14. Position the fuel level sensor aside. Using the Fuel Storage Tanker, completely drain the RH saddle of the fuel tank.

Fuel Tank Draining — original illustration 3, reference 6111Original colors & callouts · Select to enlarge

NOTE: Inspect the surfaces of the Fuel Level Sensor flange and fuel tank O-ring
