Quick Release Coupling

Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,113HTML edition
← Chapter contentsManual collection

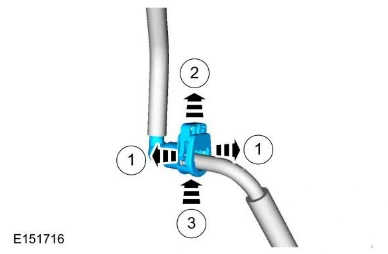

Quick Release Coupling — original illustration 1, reference 6113Original colors & callouts · Select to enlarge

4.

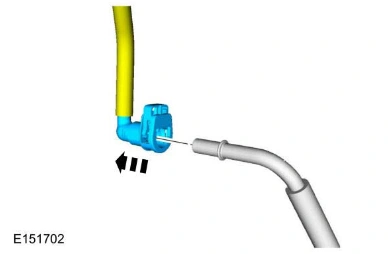

Quick Release Coupling — original illustration 2, reference 6113Original colors & callouts · Select to enlarge

Connect

1. Inspect and clean both quick coupling ends.

Quick Release Coupling — original illustration 3, reference 6113Original colors & callouts · Select to enlarge

NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

2. Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.
